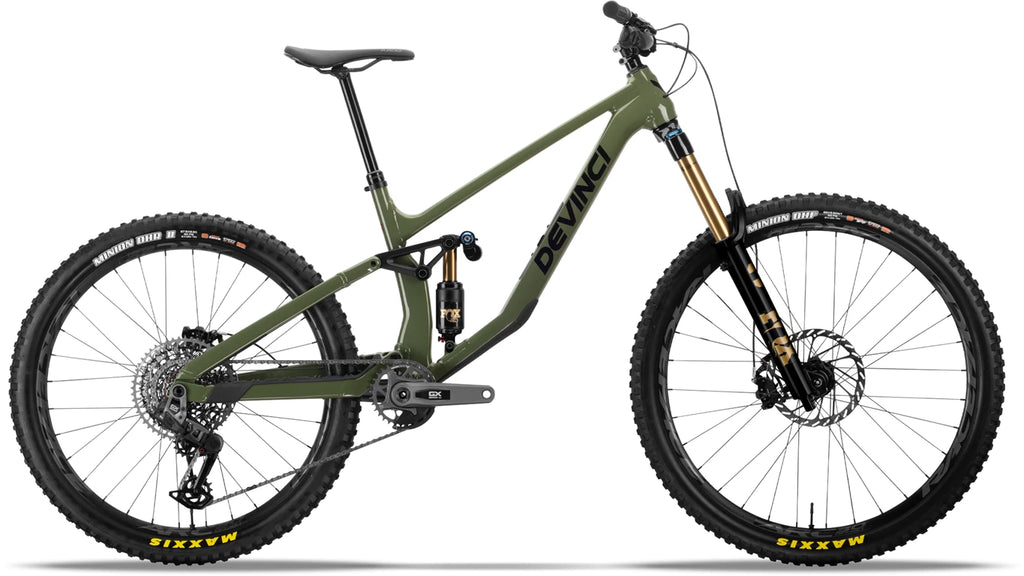

The all-new Spartan
Purpose-built aluminum powerhouse.
Tough trails have finally met their match. The all-new, fourth-gen Spartan redefines capability. With 165mm of rear travel and 170mm up front, powered by Split Pivot suspension, the Spartan remains indomitable. This purpose-built enduro powerhouse returns to its iconic roots—now featuring adjustable chainstay length, SHED downtube storage, a Made-in-Canada Optimum G04 aluminum chassis, lifetime warranty, MX or full 29” compatibility, and a hard-hitting ride quality.
| Rear travel | 165 mm |
| Front travel | 170 mm |
| Wheel size | MX & 29'' |
| Rear tire clearance | 27,5'' x 2.6” |
| Rear hub spacing | 12 x 148 Boost |
| Chainring clearance | max & min | 34T - 28T |
| Chainline | 55 mm |
| Derailleur hanger | UDH™ |
| Caliper mount | 200 mm Post Mount |
| Max rear rotor size | 220 mm |
| Seat tube diameter | 31.6 mm ID / 34.9 mm OD |
| Max seatpost insertion | S→ 270 mm / M → 300 mm / L → 330 mm / XL → 350 mm |
| Headset | Top ZS44 | Bottom ZS56 |
| Cable routing | Internal |
| Rear shock dimension | Trunnion | 205 x 65 mm |
| Rear shock hardware | Top: NA | Bottom: 40 x 10 mm |
| Linkage bearing type | Enduro™ double-lip sealed |
| Fork dimensions | Axle-to-Crown measurement 586 mm / Offset 44 mm |
| Chain guide mount | ISCG05 |
| Frame material | 6061-T6 Aluminum | Optimum G04 |
