Details

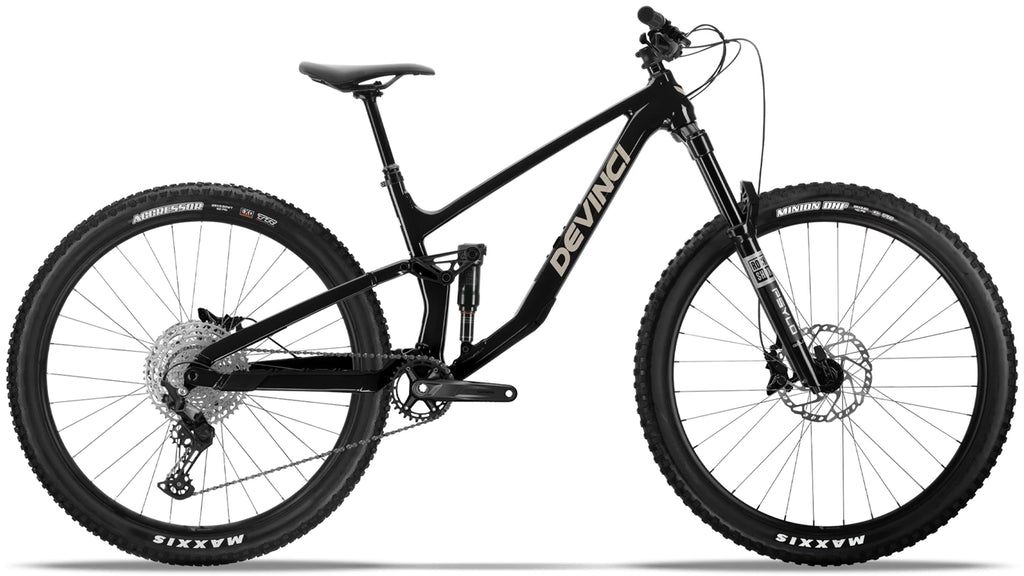

The new Troy ST is the black belt of the Troy lineup. Exceptionally agile, its 130mm travel Split Pivot frame features updated geometry with size-specific chainstays, letting you tackle trails you never thought possible—fast. Integrated downtube storage and a fearless attitude make all-day rides on “once-a-year” trails feel like a weekly adventure. Full 29" wheels for M-XL and full 27.5" for XS-S, the ST stays true to its purpose. Made in Canada, lifetime guaranteed, and ready to ride, this bike proves that sometimes less travel means more fun.
- 6061-T6 aluminium frame
- Shimano Deore drivetrain
- RockShox Psylo Silver RC suspension fork
- RockShox Deluxe Select shock
Specifications
| Gender | Unisex |
|---|---|
| Frame Material | Aluminum |
| Wheel Size | 27.5 inches, 29 inches |
| Brakes | Shimano Deore M4100/MT410 | 2 Pistons | Shimano RT66 | 203mm rotors |
| Chain | KMC X12 | 12s |
| Brake Type | Disc |
| Recommended Use | Trail, Cross-Country |
| Suspension | Full suspension |
| Fork Travel | 130mm - 140mm |
| Crankset | Shimano MT5121 | 32T | 170mm |
| Fork | RockShox Psylo Silver RC | 140mm travel | 44mm Offset |
| Frame | Aluminum 6061-T6 | Optimum G04 |
| Handlebars | V2 Pro | B:35mm | R:30mm | W:800mm |
| Hubs | Front | Formula DC-611 | Sealed | 6bolts | TA 15x110mm Rear | Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline |
| Cassette | Shimano Deore M6100 | 12s | 10-51T | Microspline |
| Rear Derailleur | Shimano Deore M6100 | 12s |
| Rear Shock | RockShox Deluxe Select 185x47.5 Trunnion |
| Rims/Wheels | V2 Comp | 29mm inner | TR |
| Saddle | Devinci |
| Seatpost | TranzX Dropper | 31.6mm |
| Shifters | Shimano Deore M6100 | 12s | I-spec EV |
| Spokes | Sapim Stainless 14G with Nylok |
| Tape/Grips | Devinci |
| Tires | Front | Maxxis Minion DHF | 29x2.5WT | 3C | Exo | TR | MaxTerra Rear | Maxxis Minion DHF | 29x2.5WT | 3C | Exo | TR | MaxTerra |
| Groupset | Deore |
| Brand | DEVINCI |
