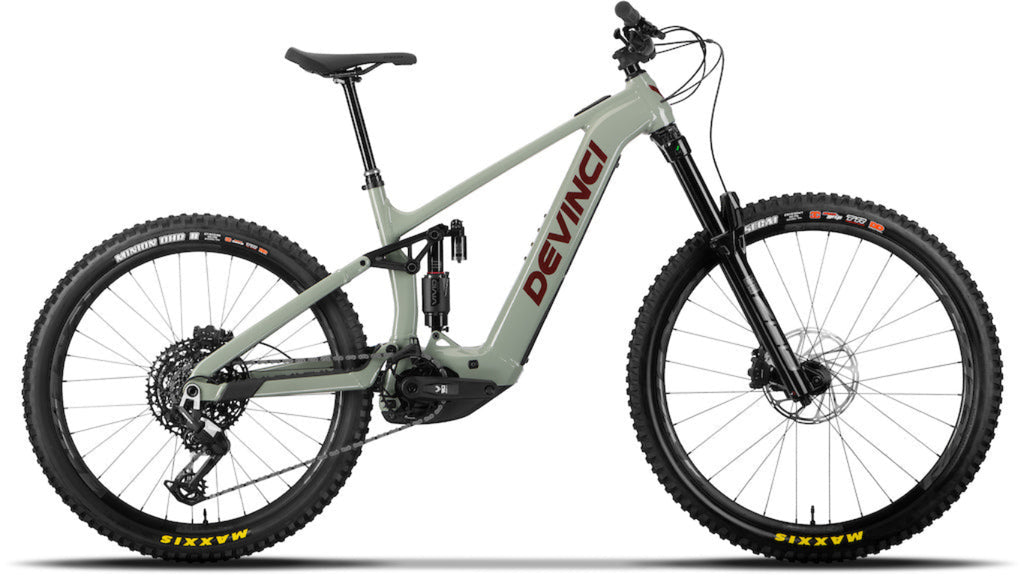

Full power meets long travel. The new E-Spartan is here and isn’t trying to be anything it’s not. This Canadian-made e-MTB is designed and tested for the toughest terrain. Leave hesitation at home, this e-bike won’t hold you back. Maximum range, no fuss, no overcomplicated tech, just a simple platform featuring the reliable, proven Bosch Performance Line CX Gen 5 system. The new E-Spartan gets the job done.
| Rear travel | 165 mm |
| Front travel | 170 mm |
| Wheel size | Mixed-Wheel (27,5'' rear & 29'' front) |
| Rear tire clearance | 27,5'' x 2.6” |
| Rear hub spacing | 12 x 148 Boost |
| Max & min chainring clearance | 36T - 32T |
| Chainline | 55 mm |
| Derailleur hanger | UDH™ |
| Caliper mount | 200 mm Post Mount |
| Max rear rotor size | 220 mm |
| Seat tube diameter | 31.6 mm ID / 34.9 mm OD |
| Seatpost max insertion | S → 240 mm / M → 270 mm / L → 300 mm / XL → 340 mm |
| Headset | Haut ZS44 | Bas ZS56 |
| Cable routing | Internal |
| Rear shock dimension | Trunnion | 205 x 65 mm |
| Rear shock hardware | Top NA | Bottom 35 x 10 mm |
| Linkage bearing type | Enduro™ double-lip sealed |
| Fork dimensions | Axle-to-Crown measurement 586 mm / Offset 44 mm |
| Chain guide mount | Bosch Gen 5 2-Bolt Mount |
| Drive unit | Bosch Performance Line CX Gen5 | BDU38 | Smart System |
| Battery | Bosch PowerTube 800 - 800Wh |
| Frame material | Aluminium 6061-T6 | Optimum G04 |
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 460 | 495 |
| B - SA (DEG) | 77.8 | 77.7 | 77.5 | 77.4 |
| C - HA (DEG) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - TT (MM) | 568 | 591 | 617 | 641 |
| E - REACH (MM) | 436 | 456 | 478 | 500 |
| F - CS (MM) | 438 | 438 | 438 | 438 |
| G - WB (MM) | 1221 | 1245 | 1269 | 1294 |
| H - BBH (MM) | 355 | 355 | 355 | 355 |
| I - SOH (MM) | 765 | 765 | 765 | 765 |
| J - STACK (MM) | 617 | 626 | 631 | 636 |
| K - HT (MM) | 105 | 115 | 120 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
